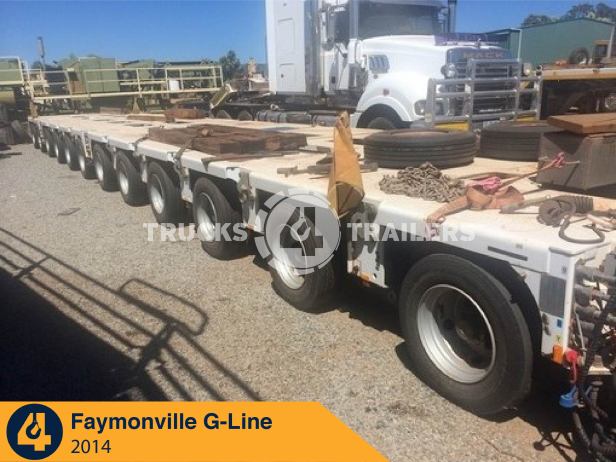

Faymonville G-line THP-SL

215/75R17,5

12

Australia

30.00 meter

3.00 meter

1.00 meter

48 metric ton

480 metric ton

hydraulic

New Zealand

12 axles 2013 (34 t per axles)

Gooseneck 35t (2013)

Turntables 150t Drawbar and powerpack

2 + 4 + 6 axles (2013)

main features - pivot ring bearing saddle plate, 3, 5 '- King pin and adjustable steering wedge - built-hydro-mechanical double steering for the articulation of swing axles (2-circuit steering, four hydraulic cylinders) - hydraulic lifting and lowering function, including work supports -. Hydraulic differential circuit - designed loading area (approximately 3,700 x 2.440mm) with checker plate flooring - Design for a tech. Imposed load up 35to. - By turning radius 2800mm for use with a 4-axle Sattelzugmaschie - interpretation for the following saddle heights: - THP / UT: 1.350mm beldaden - THP / SL / ST: 1.400mm loaded - recording device for hanging and mechanical locking the bridge Einhängeteils - integrated combination -Laschenkupplung for connection for connecting to a THP-chassis - aluminum side plates (400mm high, four-sided) - central lubrication system - hydraulic coupling bolt GoldhoferTHP SL 4 in longitudinal and transverse direction combination capable chassis module - box-shaped center frame with integrated air and hydraulic oil tank - front and rear optimized stud flap coupling for longitudinal combinations - two twin tires Pendelachsaggregate with 8 wheels per axle line - bogies by means of slewing ring mounted on the vehicle frame - hydraulic axle compensation +/- 300mm, hydro-pneumatic gas pressure accumulator suspension and hose rupture safety valves on all bogies - in the chassis built, hydromechanical two subgroup-wheel-positive steering with maximum steering angle of the axle units of + / 55 ° - 2-line four-wheel pneumatic brake and spring-loaded parking brake - hydraulic. Locking bolts for THP / SL-coupling - ABS / AGS -Achslast max 45,000 kg livery with Inter zinc 52 Goldhofer - 140to - Flatbed bridge, load length of 7,000 mm, traversable - welded construction from high strength steel StU 690, formed as a flat, box-shaped tube with a continuous sheet covering - cargo area dimensions (L x W) 7,000 x 3,000 mm - 8,400 mm dome length approx - height / loading height approximately 300mm / 500mm - front claws for engaging in the gooseneck or in a quick coupling adapter, rear
